Nekuta Module

The optional @devtools/nekuta-plugin adapter exposes Nekuta stores through the Nekuta Stores custom inspector. It reads the library's store registry and applies edits through $patch; it does not mutate React Fibers. The generic React Components view remains read-only.

Try The Verified Playground

From this repository's root:

npm install
npm run build
npm run start:dev --workspace @devtools/vite-playground

Open the Vite URL printed by the server (normally http://localhost:9020/). The Nekuta store fixtures section contains a counter and a todo store. Open the floating React DevTools panel, dock it to the bottom for more room, and select Nekuta Stores. If a crowded tab bar interferes with pointer selection, focus the Nekuta tab with the keyboard and press Enter.

Use the embedded overlay for this walkthrough. Its same-origin iframe can access the application's plugin bridge; an independently opened standalone client does not automatically share that registry. Browser-extension delivery is not covered by this verified Nekuta path.

Connect Your Own Stores

The adapter requires @nekuta/core version >=0.1.0. The repository uses the 0.1.x API. Add the adapter to an application that already uses Nekuta:

npm install -D @devtools/nekuta-plugin

Use the Vite delivery guide to load the panel. Create your stores against the same Nekuta instance passed to registration:

counter.ts

import { createNekuta, defineStore } from '@nekuta/core';
import { registerNekutaDevTools } from '@devtools/nekuta-plugin';

export const nekuta = createNekuta();
export const useCounterStore = defineStore({
    id: 'counter',
    state: () => ({ count: 0 }),
    getters: {
        doubled(state) {
            return state.count * 2;
        }
    },
    actions: {
        increment() {
            this.count += 1;
        }
    }
});

// Create an instance so it exists in the inspector tree.
useCounterStore(nekuta);

export function registerCounterDevTools() {
    registerNekutaDevTools({ nekuta });
}

Call registerCounterDevTools() once from your development browser entry or integration setup. Use your existing Nekuta provider and subscriptions for the application's React views; defining a store alone does not mount or subscribe a React component. Keep the adapter and registration out of production bundles.

Registration needs an app-side plugin context. The current Vite playground supplies this in DevToolsPluginContext after mount. Loading the overlay alone does not initialize that context in the inspected application's module registry. When adapting the repository setup, reuse the following bootstrap in a development-only effect after React mounts, unless your host already provides it:

import {
    createDevToolsContext,
    registerDevToolsPluginContext
} from '@devtools/kit';

export function initializeApplicationPluginContext() {
    registerDevToolsPluginContext({
        context: createDevToolsContext({ shouldBridgeHookEvents: false }),
        hasRoot: true
    });
}

This is the current internal host bootstrap, not a Nekuta option or a public plugin-author API. @devtools/kit is a private workspace package; the repository playground is the reproducible setup when that package is unavailable to an external application. Registration made before initialization is buffered and flushed when a context and root become available. Do not repeatedly replace an existing context or register from a component render function.

The current Vite plugin serves the overlay stylesheet but does not automatically link it into the app page. The playground adds this link through a development-only Vite HTML transform:

<link
    rel="stylesheet"
    href="/__react-devtools-overlay__/devtools-overlay.css"
/>

Use the corresponding served overlay path when configuring a different Vite base or overlayBasePath, and keep the link out of production HTML. Without the stylesheet, docking and iframe sizing can be incorrect even though store requests work.

Registration Options

Option	Default	Behavior
nekuta	getActiveNekuta()	Use an explicit application instance to avoid inspecting a different active instance. No active instance produces an empty tree.
id	nekuta	Plugin registration ID. The registry deduplicates it; the first installation wins.
label	Nekuta	Plugin descriptor label. It does not rename the Nekuta Stores inspector.

Inspector ID nekuta-stores and timeline layer ID nekuta-actions are fixed. Changing the plugin ID does not create isolated inspectors for several Nekuta instances. There is currently no public unregister function; reload the page after changing the registered instance or setup.

Browse The Store Tree

The tree lists instantiated stores by $id, not every store definition in your source files. Each node has a store tag. Tree filter matches store IDs case-insensitively; type todos in the playground to show only vite-todos. Clear the filter to restore both nodes and select vite-counter.

Node metadata contains action count and state keys. It does not currently include subscription counts, store kind, or source files.

Read The State Groups

Group	Contents	Editable
state	Entries from $state, formatted for display. The current viewer labels this group Class State.	Yes, at the top-level entry.
getters	Non-function fields outside $state, excluding $-prefixed keys.	No.
actions	Function fields excluding $-prefixed keys; displays function metadata rather than running them.	No.
metadata	Store ID and counts of state, getter, and action keys.	No.
error	An unknown-store diagnostic if a selected ID no longer exists.	No.

Empty state/getter/action groups are omitted. Values use the core display formatter, so function, circular, or complex values can appear as diagnostic objects rather than original runtime values. Do not assume such representations are safe to write back into the store.

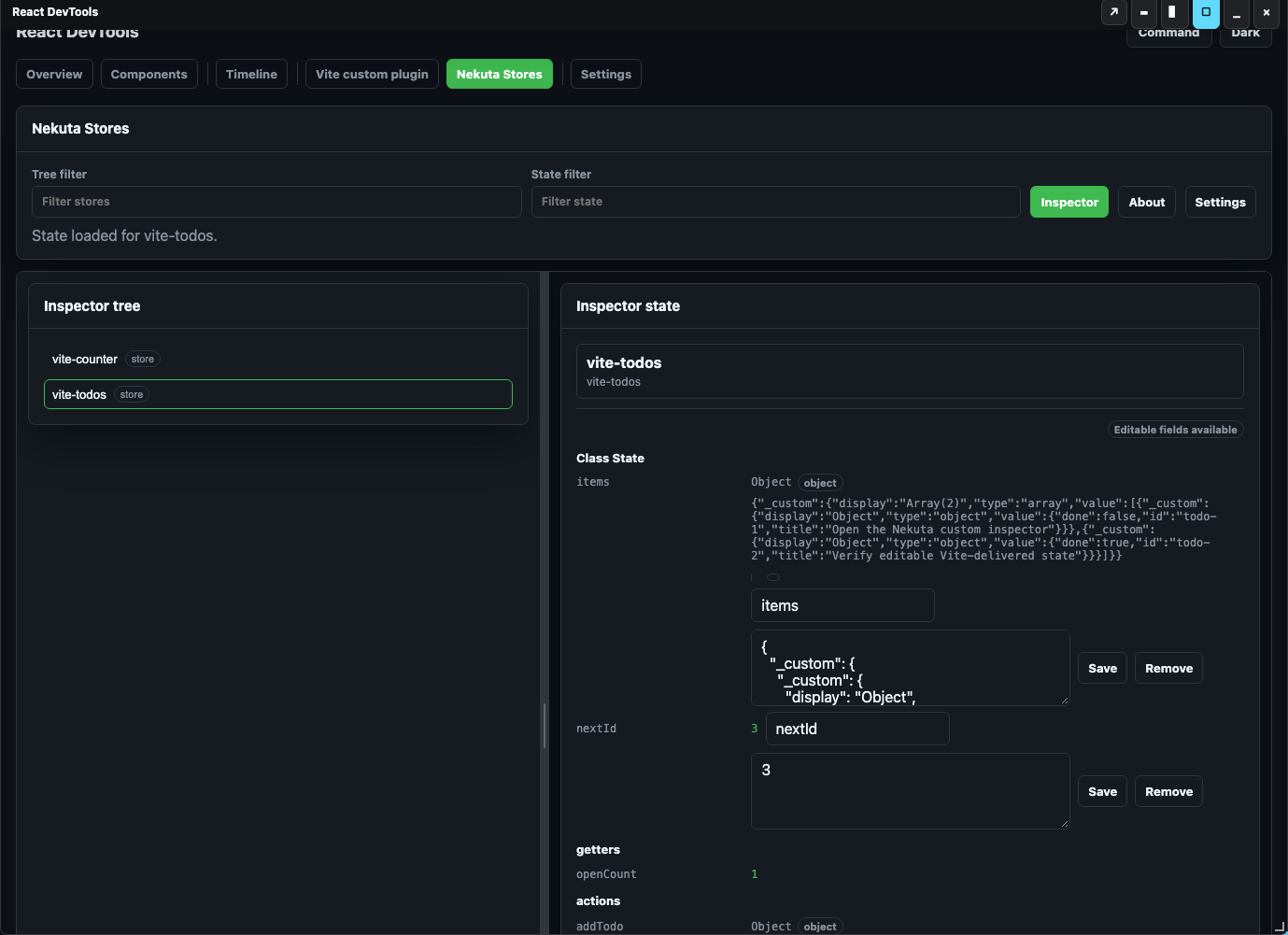

Select vite-todos to inspect its items array and nextId, with derived openCount and action metadata for addTodo/toggleTodo.

The State filter filters the displayed snapshot. Clear it before editing: edit paths use entry indexes, and filtered indexes can differ from $state key indexes. Selection requests read current library state; the inspector does not continuously subscribe or poll every store mutation. Select another store and then return to refresh after an application-side action.

Edit State And Verify The Application

Use a disposable development store for this walkthrough:

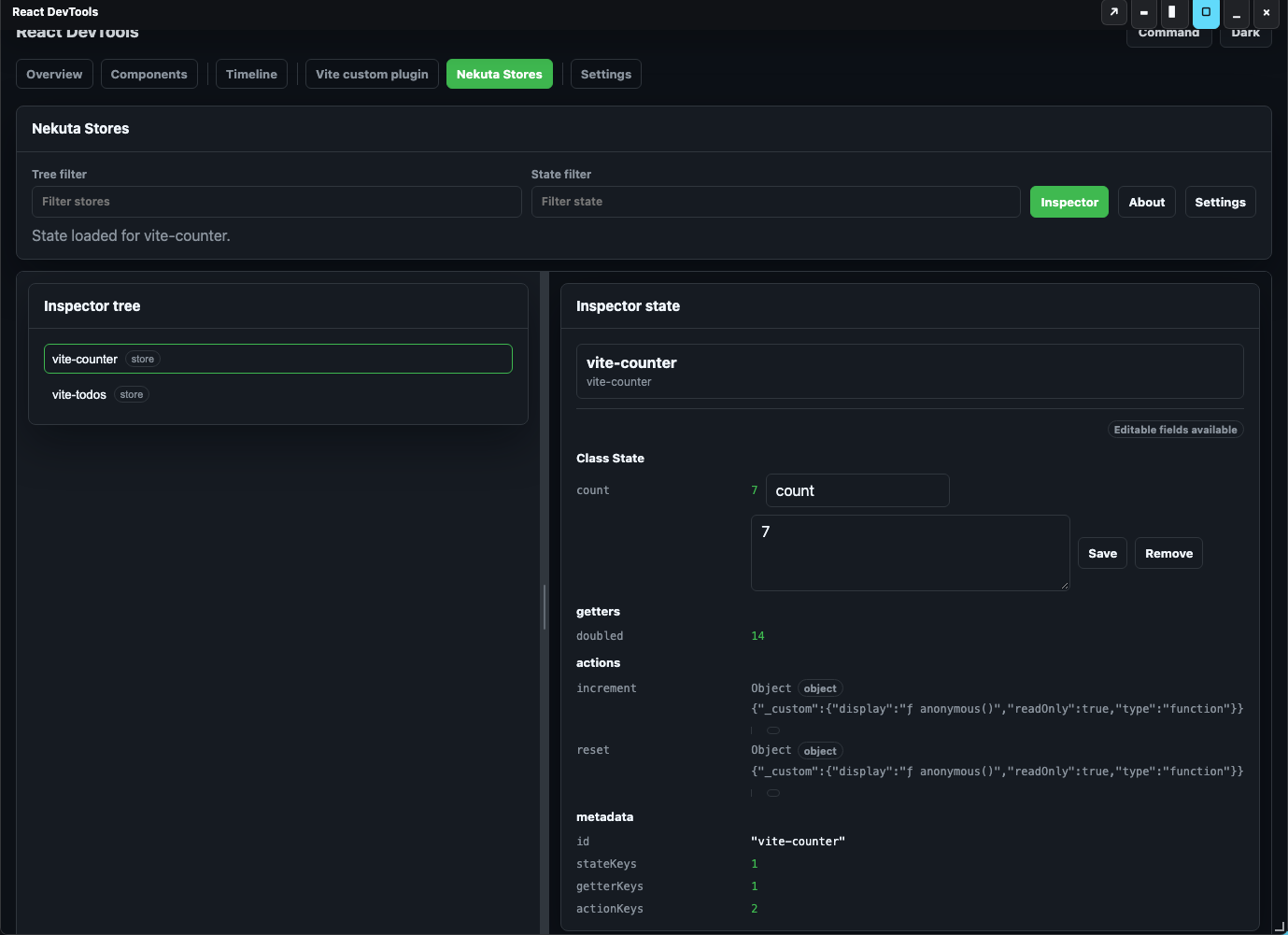

1. Select vite-counter with both filters cleared. Its count starts at 0.
2. Leave the key input as count, enter 7 in the value input, and choose Save. The status should become Updated count.
3. Check the application's Nekuta counter store: Count: 7 and Doubled: 14 confirm that this was a library mutation, not just a panel edit.
4. Select vite-todos, then return to vite-counter. Confirm the refreshed snapshot contains count: 7 and doubled: 14.
5. In the app, choose Increment, then Reset, to confirm its normal actions still work. Reselect the counter to refresh the inspector snapshot.

The adapter resolves an edit path such as ['state', 0, 'value'] against the selected store's $state keys, writes through $patch, emits a new state snapshot, and records a State edited event on nekuta-actions. The current client updates the edited field locally after Save; derived values may remain stale until you reselect the store. Emitting a snapshot is not a guarantee that every client view has subscribed to that emission.

Rename, Remove, And Value Limits

Changing the key input and saving requests a rename; Remove requests deletion. The adapter implements both with a $patch callback. These change the store's schema and can break getters/actions that expect the old key. The adapter does not prevent conflicting rename targets or validate application-specific value types. Use disposable stores, inspect the resulting application, and reload to restore this playground's initial state; there is no adapter undo stack.

The UI coerces values based on the displayed field type. Numeric fields accept numeric edits; string/boolean/collection behavior follows the state viewer's conversion rules. Editing an array/object replaces its top-level value; arbitrary nested-path mutations are not a supported Nekuta edit contract. Formatted values and invalid input can be lossy. Getters, actions, and metadata remain read-only.

What This Integration Does Not Yet Show

The adapter currently depends on Nekuta's private _s registry. It does not provide query/module trees separate from stores, subscription counts, automatic capture of every action or async transition, an action execution UI, source-file navigation, multi-instance isolation, or an undo history. It emits successful inspector edits to the timeline API; that does not establish complete timeline rendering or action recording in every delivery mode.

Troubleshooting

Symptom	Checks And Recovery
Nekuta tab is absent	Confirm development registration ran and the app-side context initialized. Use the embedded same-origin overlay. Reload after changing registration; duplicate IDs keep the first setup.
Tree is empty	Confirm a Nekuta instance is active or explicitly passed, stores were instantiated against it, and the tree filter is clear. Definitions alone do not create registry entries.
Wrong stores appear	Pass the application's explicit nekuta instance instead of relying on the global active instance. Reload after changing it.
State/getter is stale	Select a different store and return. The panel reads snapshots on selection rather than subscribing to all library changes.
Save changes the wrong entry	Clear state filters before editing because edit paths are indexed against $state keys. Reload disposable fixtures after an unintended write.
Save reports an error	Check the selected store still exists and the edit targets a top-level writable state entry. Unknown stores, unsupported groups/indexes/fields, or library patch failures can reject edits.
Application does not rerender	Verify the actual store instance and the application's Nekuta subscriptions/provider. A panel snapshot alone does not prove the React view subscribed to store patches.
Panel is narrow, misplaced, or tabs overlap	Load the served overlay stylesheet, dock to the bottom, and use keyboard tab selection if needed.

How This Was Built

The adapter is a concrete use of setupDevToolsPlugin: register an inspector and timeline layer, answer tree/state requests, handle validated mutation paths, then publish the updated library state. See the architecture and plugin-authoring guide for its implementation walkthrough and API reference, and store adapters for the general pattern.

The screenshots were captured from the running Vite playground with @devtools/nekuta-plugin 0.0.3, client 0.0.27, and kit 0.0.19. Live verification covered tree filtering, both store snapshots, editing 0 to 7, the application's 7/14 result, reselecting, counter/todo actions, rename/removal of a disposable state key, and read-only getters.
